findamll 5C Spin Index Fixture Collet, 0.0004'' for Milling Grinding, PF70 with 36 Holes, High Accuracy

5C Spin Index Fixture Collet, 0.0004'' for Milling Grinding, PF70 with 36 Holes, High AccuracySpecification:Centerline to Base Height: 70MM(2.76'')Indexing Accuracy: 0.0004''Minimum Indexing Degree: 1 DegreeApplication:It is suitable for angular positioning on milling machines, surface grinders, and for detailed layout work, facilitating operations like fluting, milling, and drillingPackage Includes: 1 of Spin Indexing FixtureFeatures:1.Engineered for accurate and durability, this 5C Spin Index Fixture is an indispensable asset for machinists and toolmakers. Crafted from high-hardness iron, it is built to be exceptionally sturdy and durable, ensuring a long service life with stable performance even in harsh workshop conditions. This robust construction significantly reduces the risk of damage and replacement costs, providing excellent value over time.2.At the core of its performance is a accurate indexing system, featuring a robust 5-inch diameter plate with 36 holes. This setup allows for accurate divisions and a minimum indexing increment of 1 degree, enabling highly accurate and repeatable positioning for a wide range of tasks. 3.Designed to meet exacting standards, the fixture ensures an indexing accuracy of 0.0004" TIR, while its ground base is parallel within 0.0005" for a perfect setup every time.4.A positive collet locking mechanism firmly secures the workpiece in place, maintaining critical alignment and accuracy during demanding operations such as drilling, milling, and fluting. 5.Offering exceptional versatility and reliability across various environments, this fixture performs flawlessly on milling machines, surface grinders, and is equally suited for accurate layout work and inspection tasks.

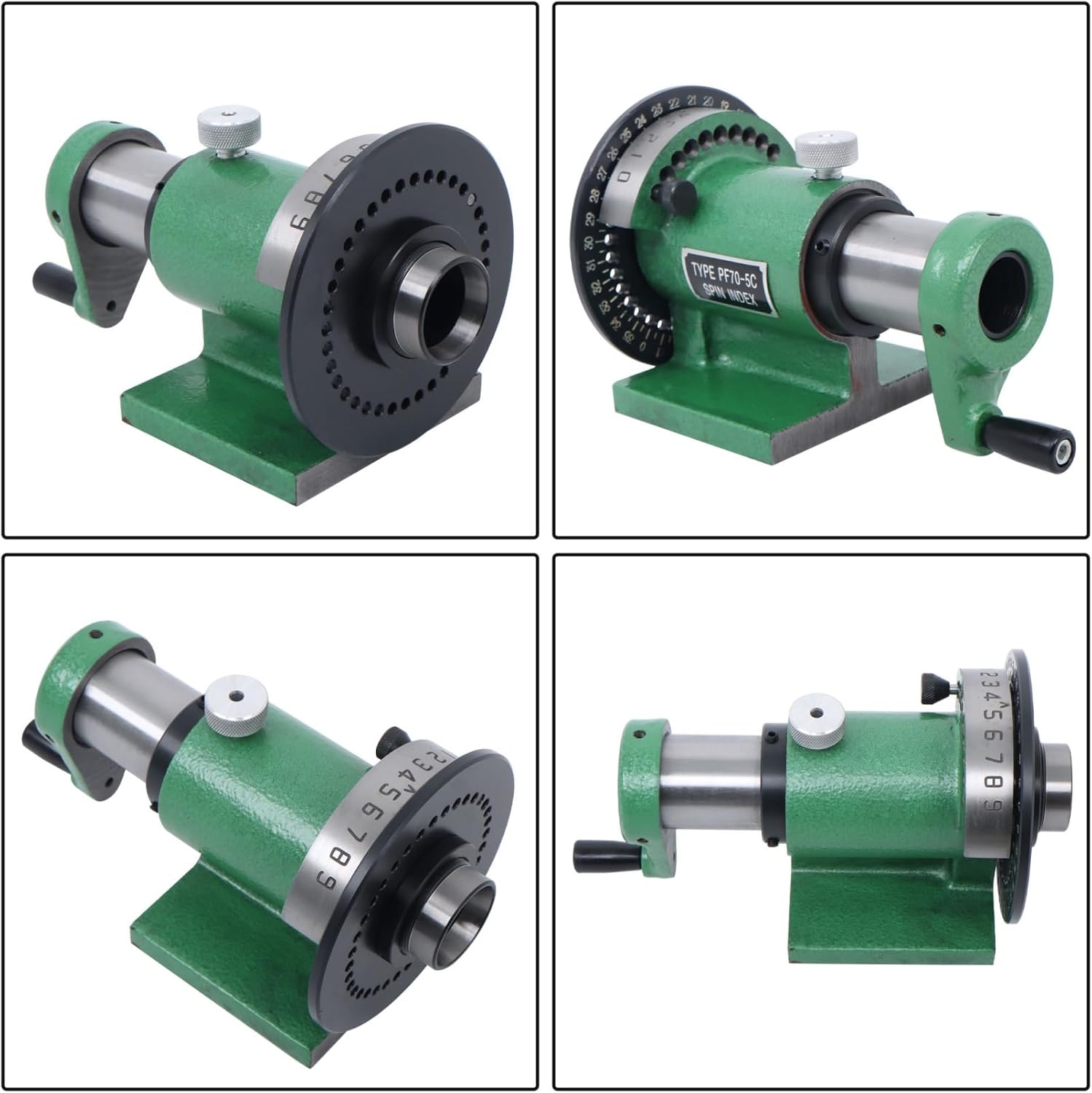

• Product- This 5C spin index fixture is an essential tool for machinists and toolmakers. It is engineered for accurate angular positioning on milling machines, surface grinders, and for detailed layout work, facilitating operations like fluting, milling, and drilling
• Application- Designed for stability across various workshop environments, this fixture performs reliably on milling machines and grinders. It is also perfectly suited for accurate layout and inspection tasks, offering exceptional versatility for complex projects

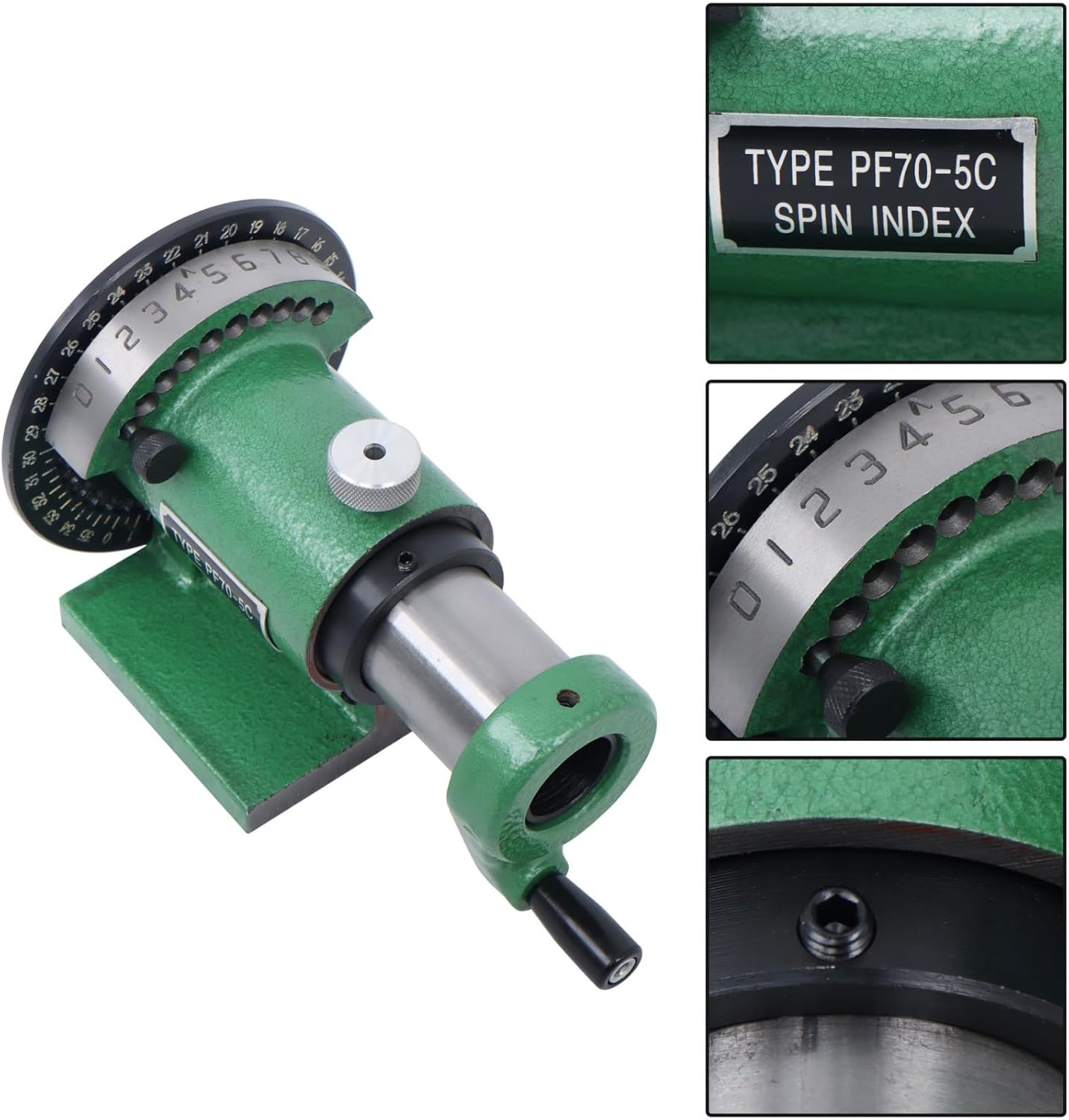

• Accurate Indexing System- The fixture features a robust indexing plate, approximately 5 inches in diameter, which is configured with 36 holes. This design enables accurate divisions and allows for a minimum indexing increment of just 1 degree, ensuring you can achieve highly accurate and repeatable positioning for your workpieces
• Locking Mechanism-- Built for exacting standards, the fixture ensures an indexing accuracy of 0.0004" TIR. Its ground base is parallel within 0.0005", ensuring a perfect setup every time. A positive collet locking mechanism secures the workpiece firmly in place, maintaining critical alignment and accuracy during demanding operations like drilling
• Long Servise Life- Made of iron, it is highly hard, sturdy, durable and has a long service life. Even under harsh conditions, it can provide stable performance, significantly reducing damage and replacement costs, and saving money
