HCDC Raspberry Pi A+ 3A+ B+ 2B 3B 3B+ 4B Zero Zero-W Terminal Block Module - Green, Screw Connector, Nylon Material, DIN Rail Mount
4.6 (126 items)
Limited Time Sale$19.20 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221103200 | Release Date | 2026/05/03 | List Price | $12.80 | Model Number | 221103200 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- DIN Rail Mount Screw Terminal Block Adapter Module. With the adapter module you can easily extend Raspberry-Pi projects to industrial control applications. Applications for Raspberry Pi A+ 3A+ B+ 2B 3B 3B+ 4B Zero Zero-W.
- Pitch 3.81mm/0.15" high quality screw terminal block, wire range 26-16AWG, strip length 5mm, Metric M2 slotted screw. FR-4 fiber glass PCB, dual copper layers. CN3 and CN4 1:1 on board connected. CN3 connect Raspberry Pi board. CN4 Extension connector, you can use a FRC 40-pins wire connect to other devices.

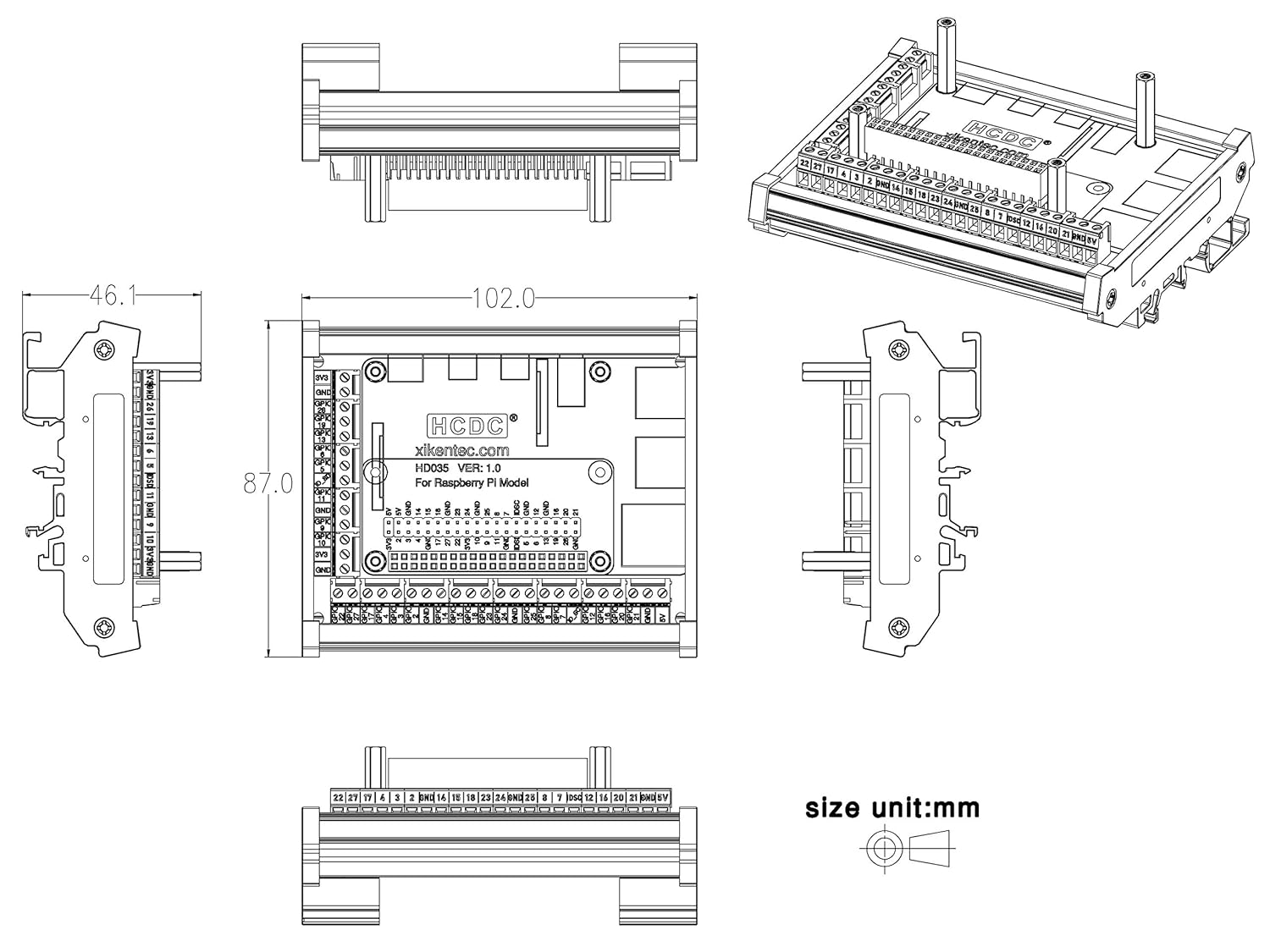

- Module Dimensions: L 102mm x W 87mm x H 45.5mm, PCB Dimensions: L 100mm x W 72.5mm.

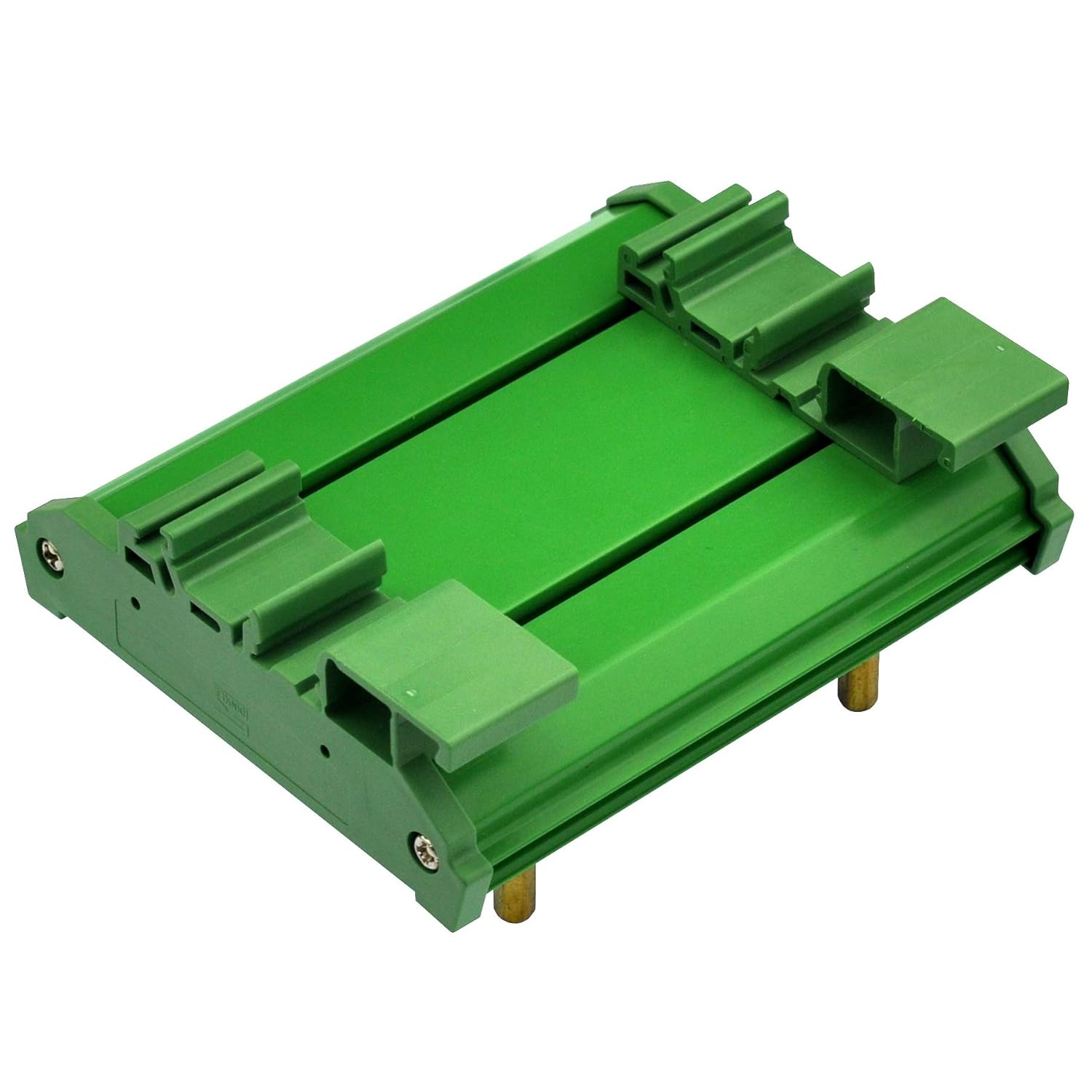

- High quality Taiwan DINKLE Fireproof nylon material DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
- Note: the item not include Raspberry-Pi module and iron rail.
| Color | Green |
|---|---|
| Gauge | 16.0 |
| Model | 6956601852613 |
| Pitch | 3.81 Millimeters |
| Brand Name | HCDC |
| Unit Count | 1.0 Count |
| Part Number | HD035T |
| Manufacturer | Xiken Electronic Technology Co., Ltd. |
| Material Type | Copper |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 3 Amps |
| Number Of Poles | 2 |
| Centerline Length | 102 Millimeters |
| Number Of Contacts | 80 |
| Number of Positions | 40 |
| Item Dimensions W x H | 3.43"W x 1.79"H |
