kimllier K11-80 3-Jaw Self Centering Lathe Chuck 80mm(3-Inch) Diameter Fit for CNC Drilling Milling Machine Wood Turning
4.0 (27 items)
Limited Time Sale$26.13 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221708218 | Release Date | 2026/05/03 | List Price | $17.42 | Model Number | 221708218 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

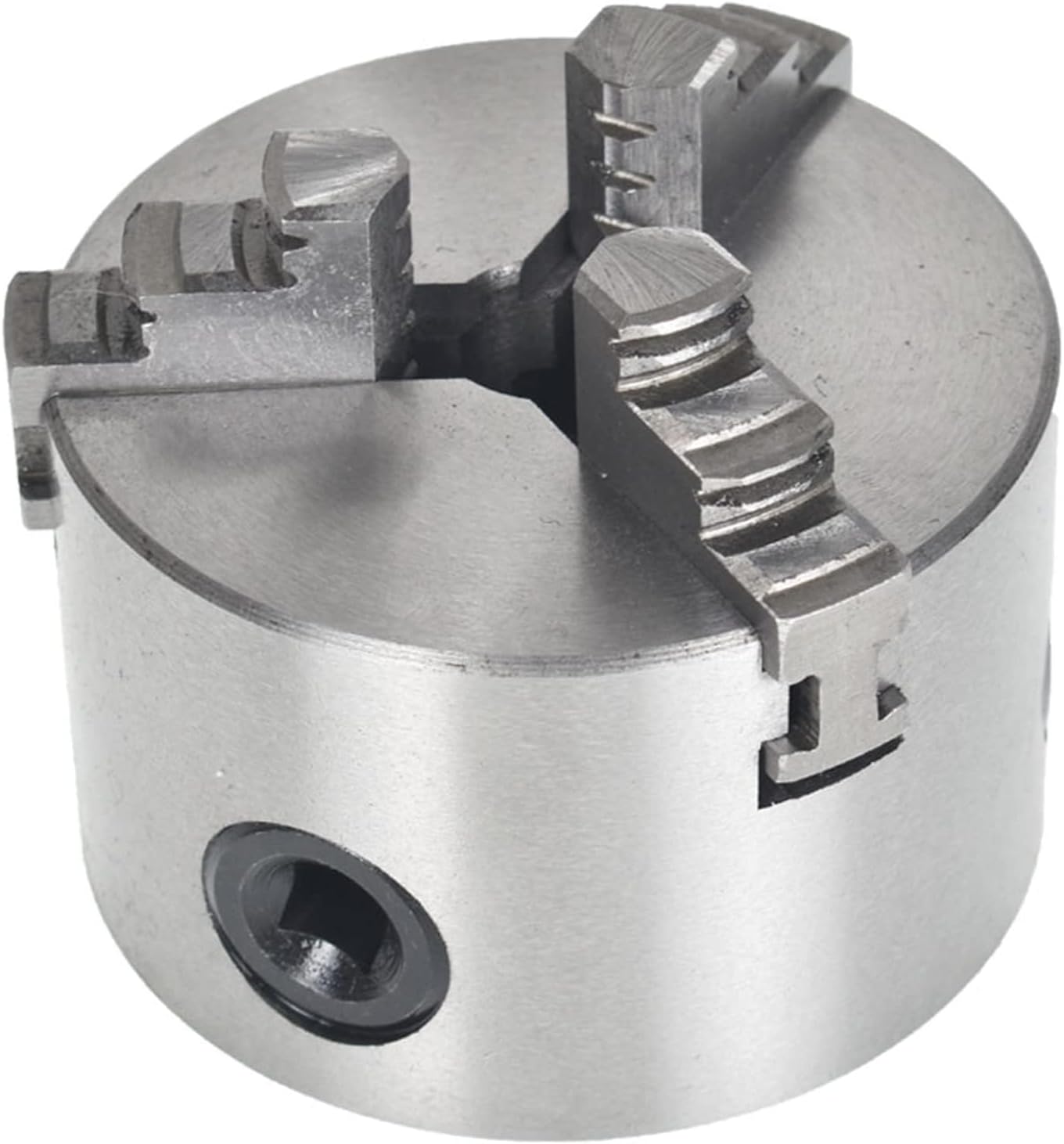

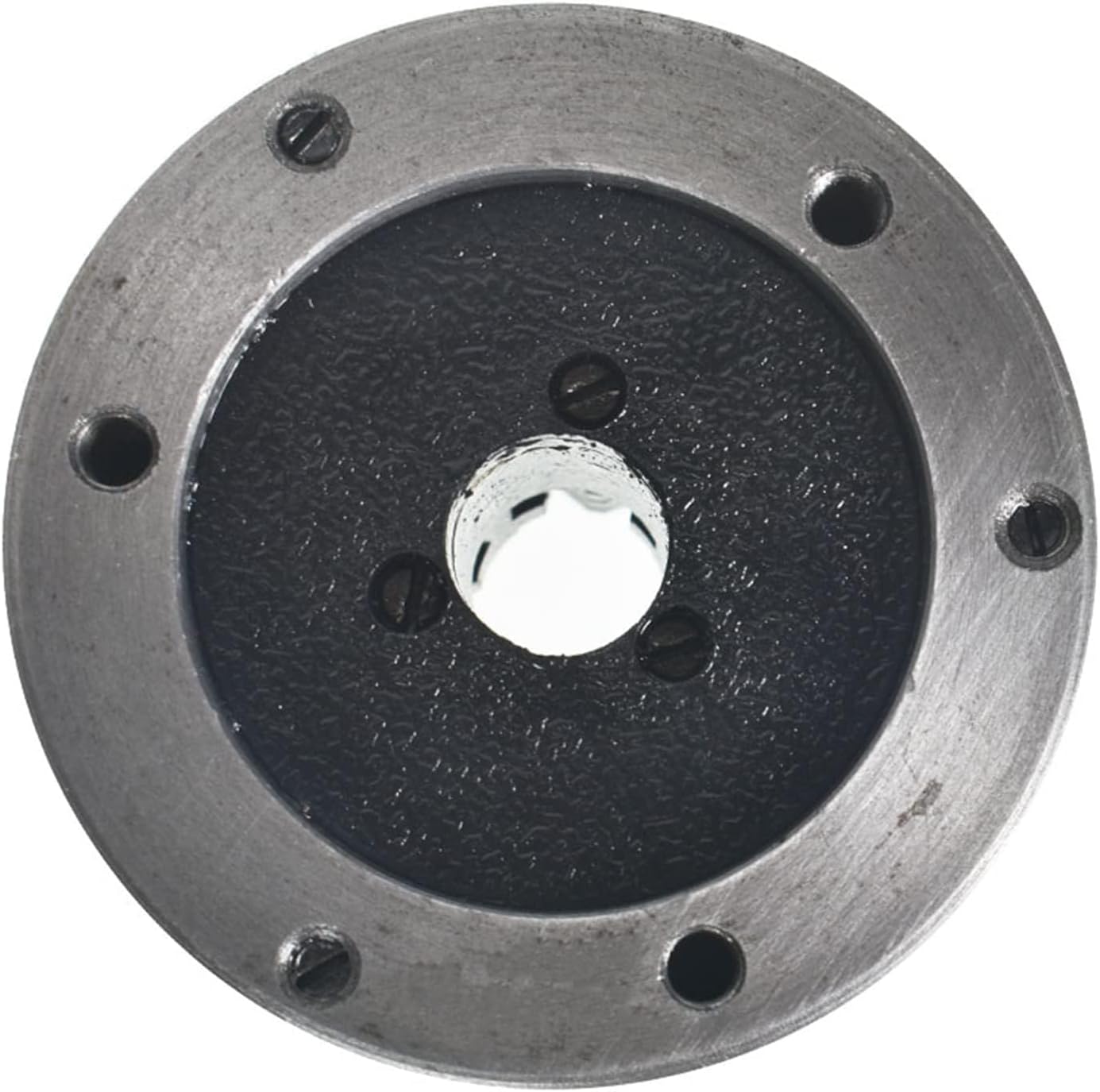

K11-80 3-Jaw self centering lathe chuck is widely used, with good clamping force and tight sealing performance.Specification:Model: K11-80Jaw: 3 JawColor: SilverMounting Thread: 3-M6Lathe Chuck:Size: 80 mm (3.15")Outside Diameter: 80 mm (3.15")Bolt Circle Diameter: 66 mm (2.6")Center Thru Hole Diameter: 16 mm (0.63")Internal Jaw Clamping Range (A-A1): 2-22 mm (0.078"-0.866")Internal Jaw Jamming Range (B-B1): 25-70 mm (0.98"-2.756")External Jaw Clamping Range (C-C1): 22-63 mm (0.866"-2.48")Accuracy: 0.002"Features:Made of quality material, the chuck base is hardened and durable, could be used for a long periodThe chuck is suitable for machine tools and accessories for general lathes, economical CNC lathesPackage Includes:1 x 80mm/3-Inch Lathe Chuck Body1 x Internal Jaws Set1 x External Jaws Set3 x Mounting Bolts1 x Chuck Key
- Material: The centering chuck is made of high-quality steel and clamped firmly
- Overall display: 1 x internal jaws set, 1 x external jaws set, 1 x wrench and 3 x screws
- Long Service Life: Both sides of jaw teeth and guides are ground, durable, could be used for a long period
- Main Parameter: 3 jaw self-centering design lathe chuck. Diameter: 80 mm (3.15inch), Internal clamping range: 2-22 mm (0.078-0.866inch), Jamming range: 25-70 mm (0.98-2.756inch), External clamping range: 22-63 mm (0.866-2.48inch)
- Applicable Range: The chuck is suitable for machine tools and accessories for general lathes, economical CNC lathes, grinding machines, milling machines, drilling and machine accessories
| Capacity | 80 Millimeters |
|---|---|
| Lock Type | Self Centering |
| Brand Name | kimllier |
| Unit Count | 1.0 Count |
| Handle Type | keyed |
| Item Weight | 1850 Grams |
| Thread Size | M6 |
| Manufacturer | kimllier |
| Model Number | Does Not Apply |
| Item Diameter | 80 Millimeters |
| Material Type | Alloy Steel |
| Item Type Name | lathe chuck |
| Compatible Devices | Lathe |
| Included Components | Case |
| Manufacturer Part Number | KM-1857118-570909-LR |
